Description

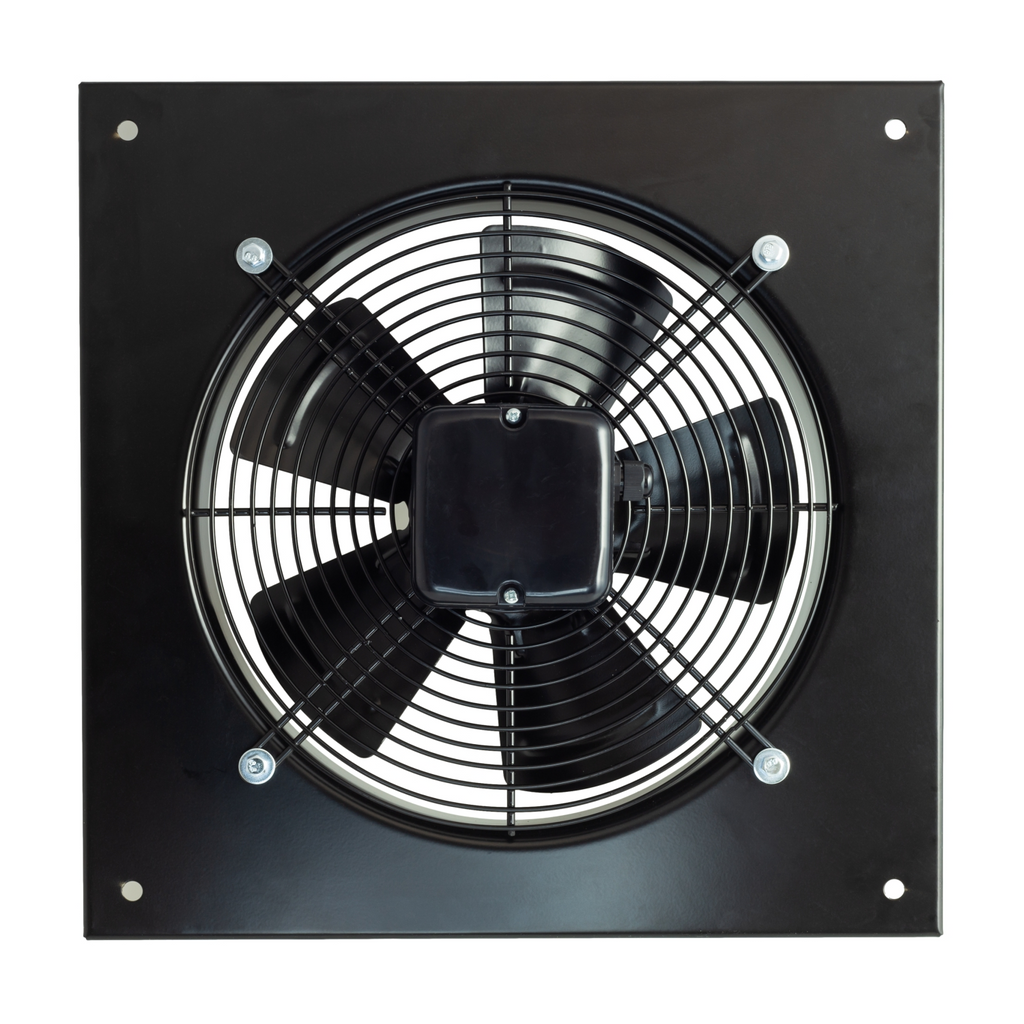

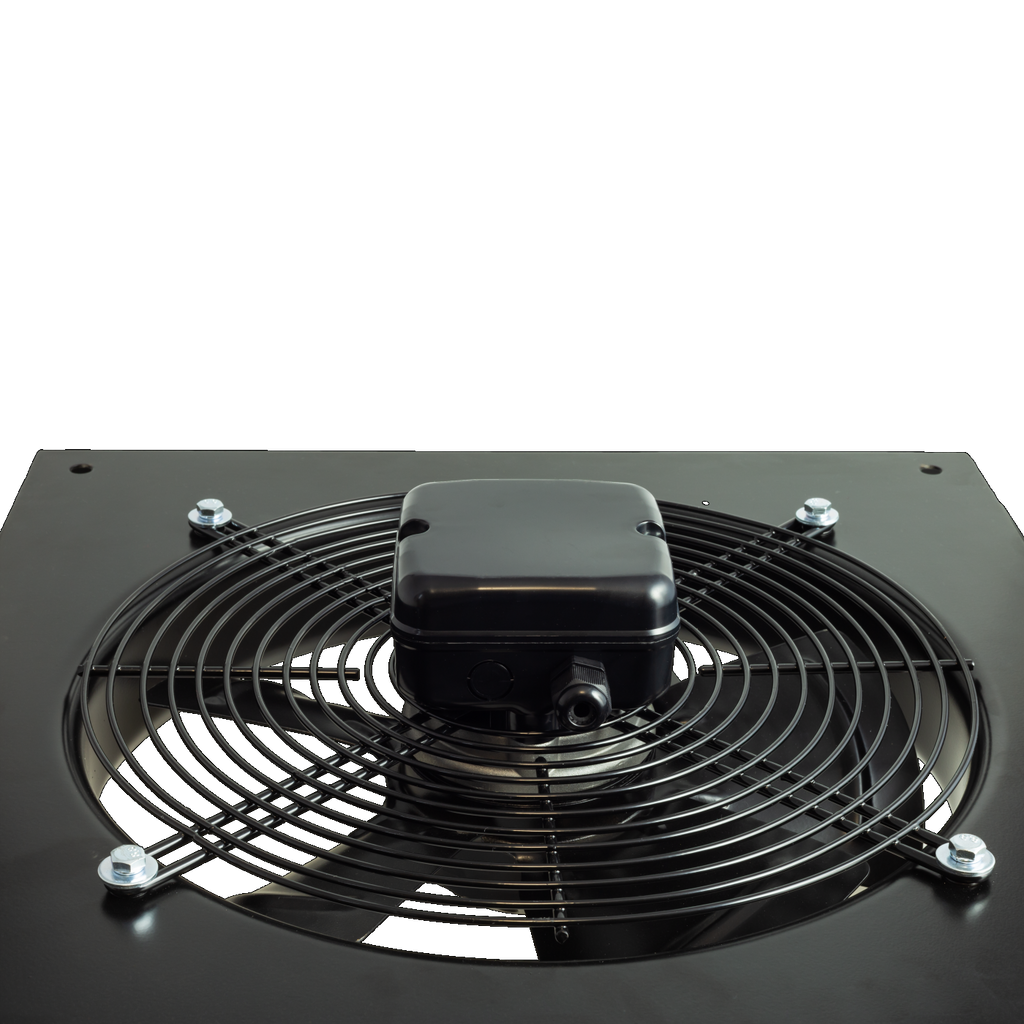

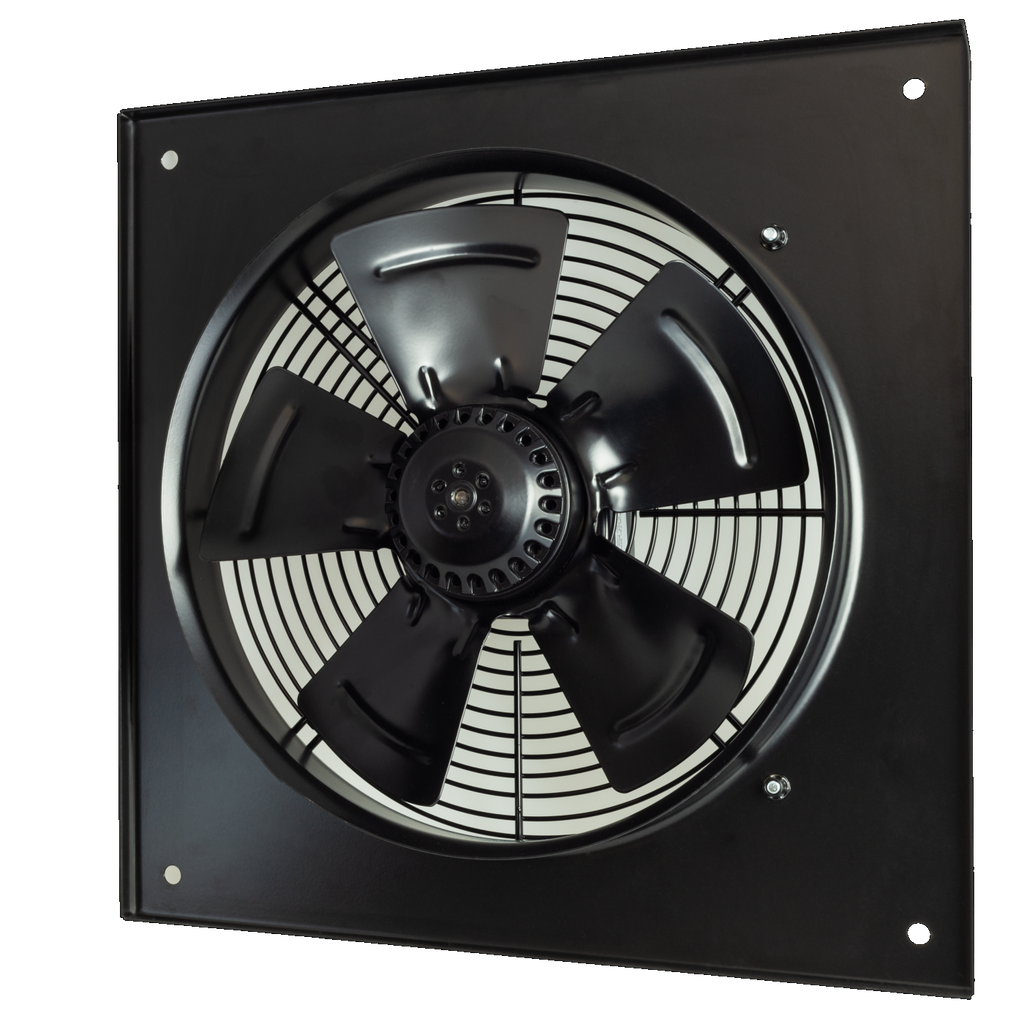

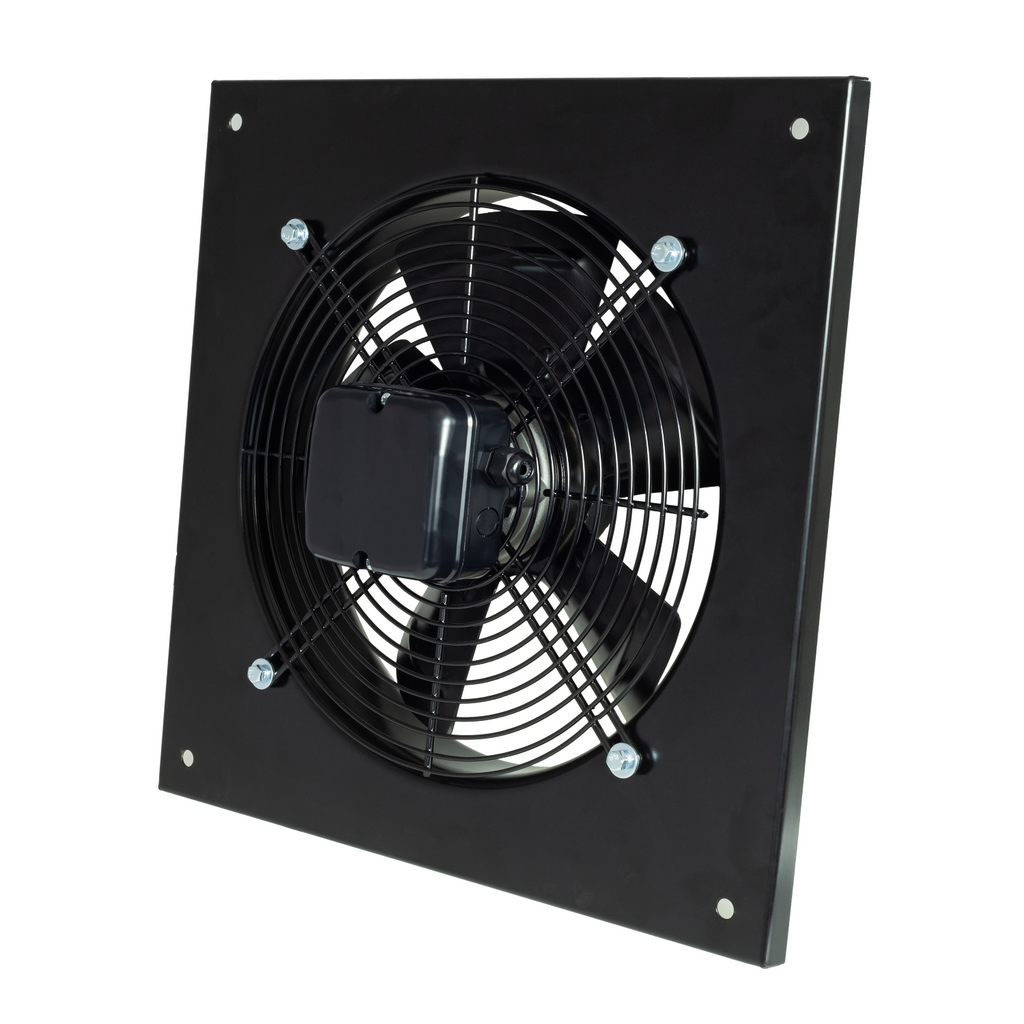

AXF350B – Axial extractor fan for commercial spaces, workshops, and kitchens.
Product Features

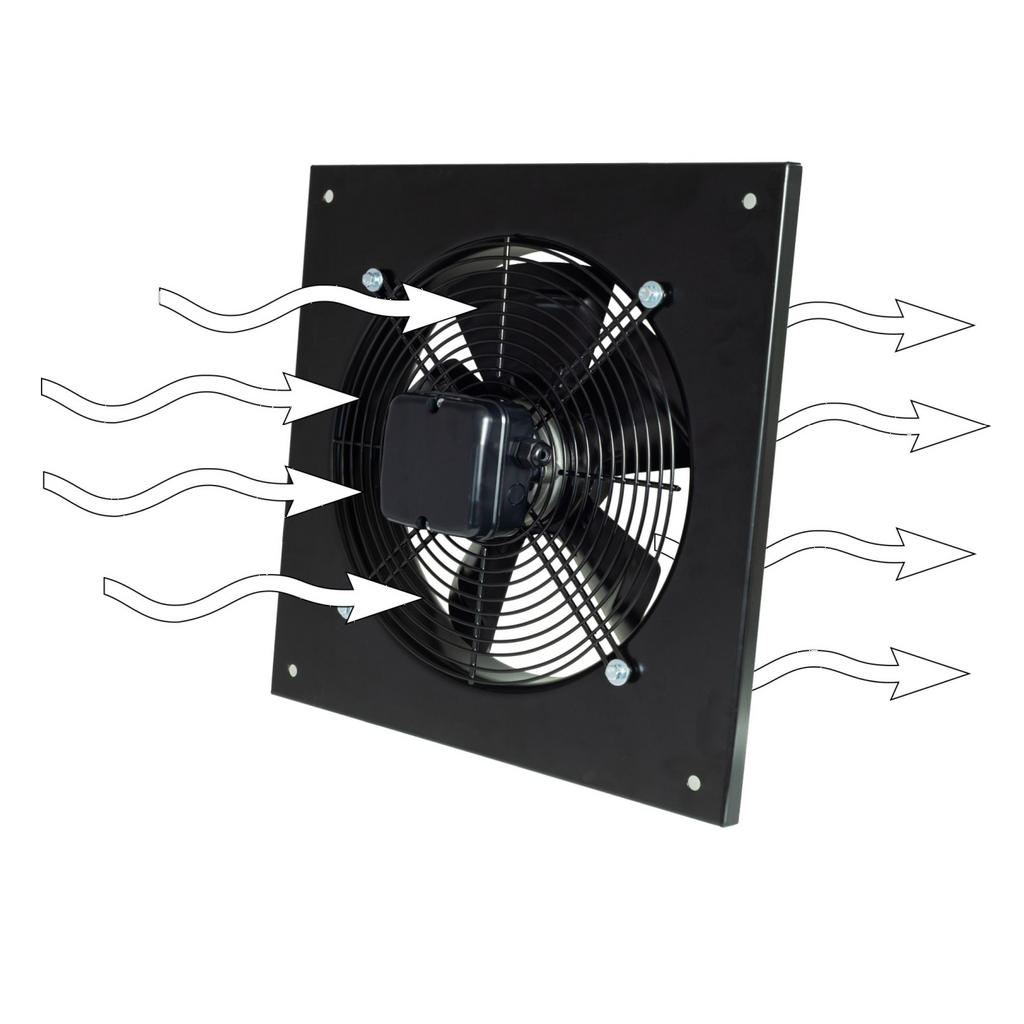

- Exhaust airflow function

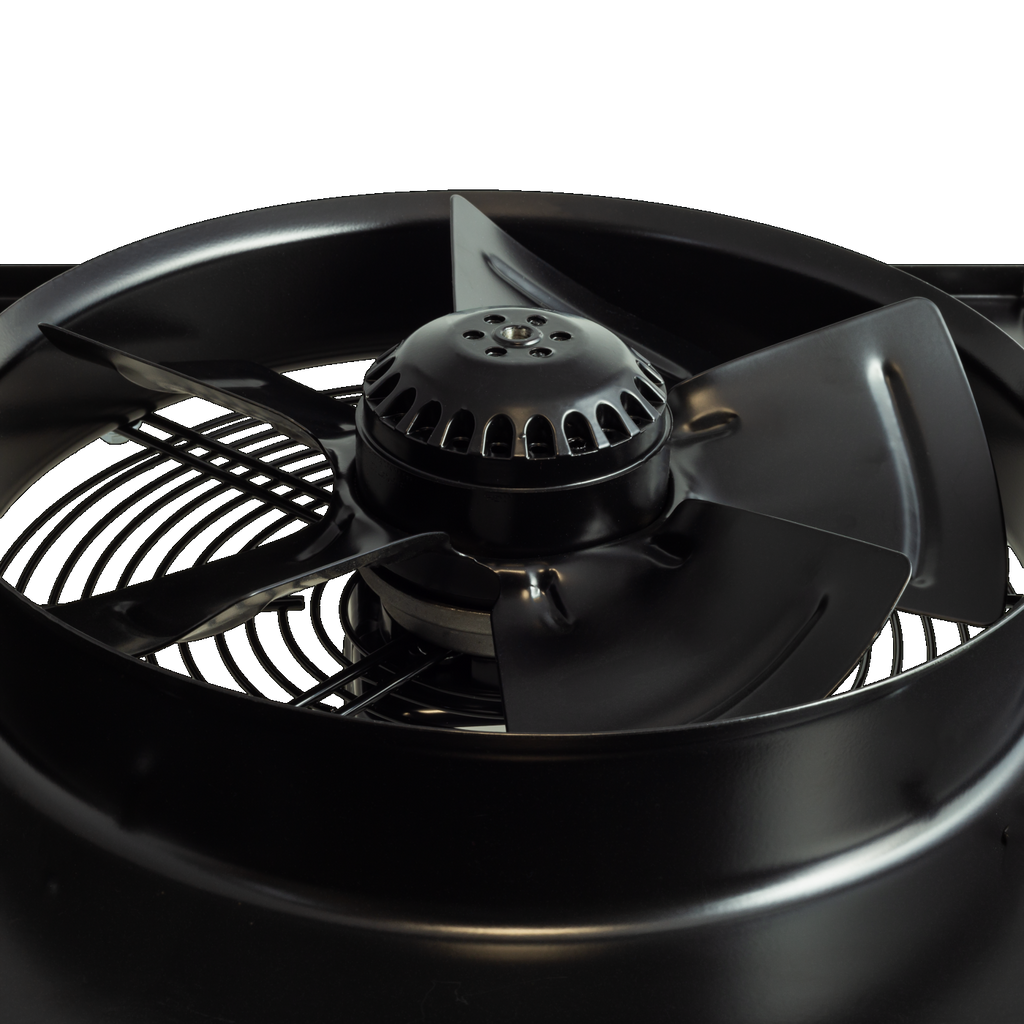

- Ball bearing motor for long lifespan and quiet operation
- Vertical and horizontal installation
- Warranty: 24 months
Technical Specifications
- Diameter: 380 mm
- Colour: Black
- Airflow: 2700 m³/h
- Voltage: 220–240 V ~ 50Hz
- Power: 135 W
- Noise level: 58 dB(A)
- Motor speed: 1380 RPM
- IP rating: IP44
- Working temperature: -30℃ – 60℃

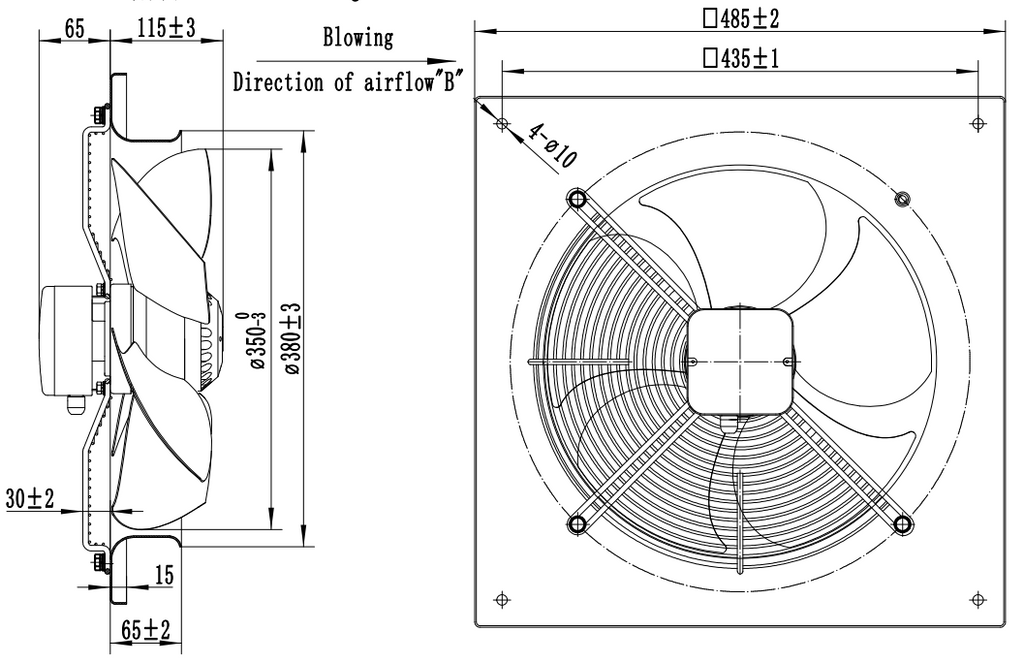

- Installation depth (into hole): 115 mm

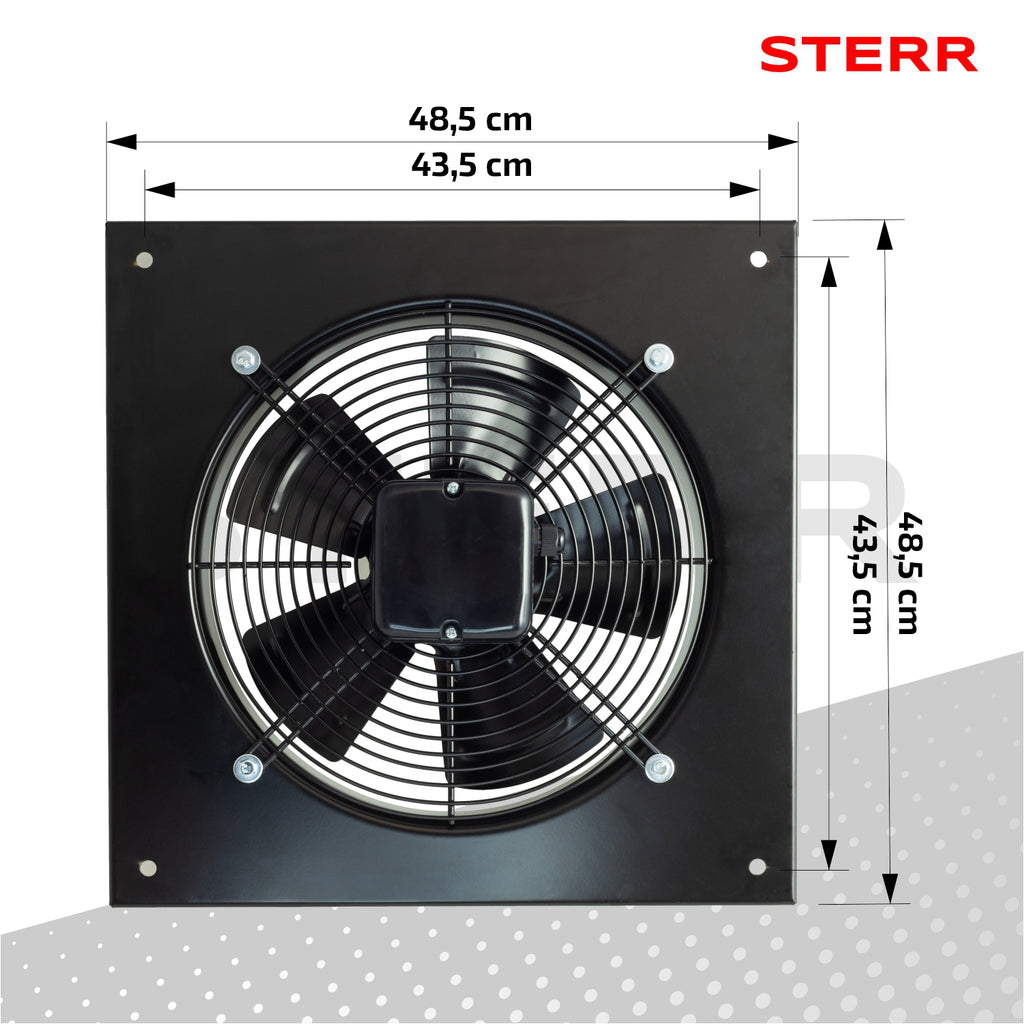

- Dimensions (W×H×D): 485×485×180 mm
- Material: Metal
- Weight: 7.8 kg
- Recommended products: FSC001 speed controller
Applications

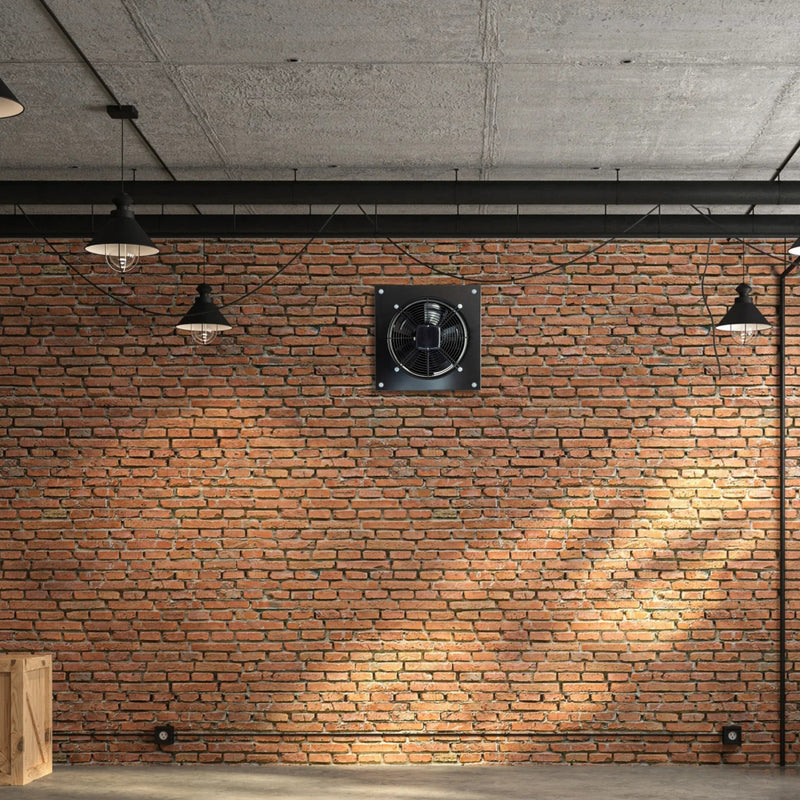

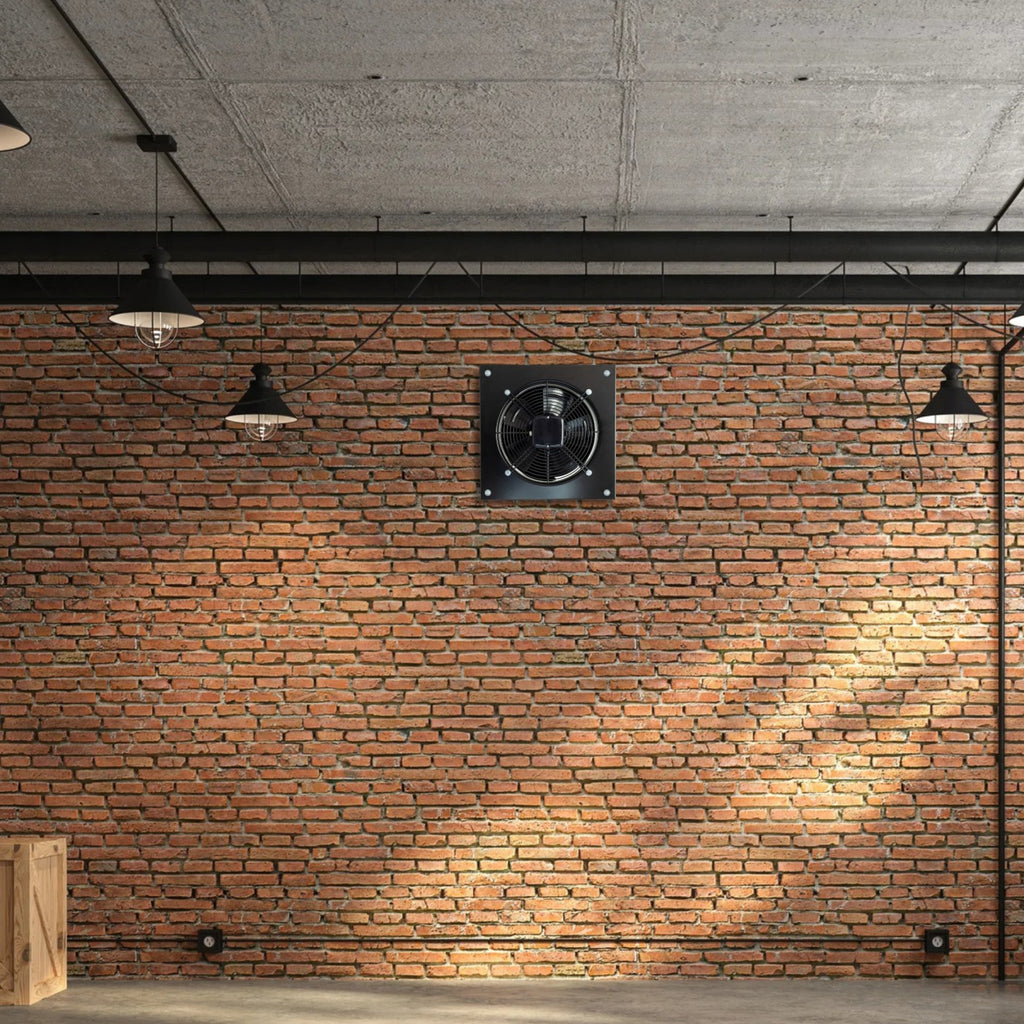

Axial fans are designed for efficient air circulation and ventilation in industrial, commercial, and large residential areas. They are commonly used in restaurant kitchens, workshops, warehouses, greenhouses, factories, and garages. Ideal for systems requiring high airflow with moderate pressure, these fans ensure effective removal of heat, smoke, odors, and humidity, providing a reliable and durable ventilation solution.
Packaging Contents
- Fan
- Operating instructions
